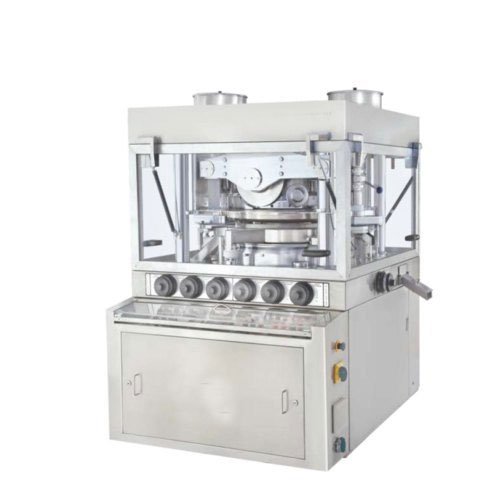

High Speed Tablet Press Machine

Approx Price:

High Turret Speed: upto 100 RPM
Direct drive: ACVFD
Zero Clearance force feeder: ACVFD
Swing type pressure roll: Main & Pre
Pre Compression force: 10 ton
Main compression force: 10 ton
Contact Parts: SS 316

High speed production has always been the demand of industry; we introduce High Speed Tablet Press or compression machine with pre-compression for better productions. Machine is suitable and specially designed for large scale production and for higher tablet output.

As per industry standards machine is prepared with consideration of GMP. Corrosion free and durable working ensured by stainless steel grade 304 parts. Machine has easy controls and user friendly system. Press has auto lubrication system to keep it working for long lasting period. The press is equipped with electromagnetic clutch with helical gear in order to driver turret. The control panel is detachable and provided on the top of the machine. In order to provide more ease of production the press is equipped with round hoppers with butterfly valve. The most premium feature of this machine is that it has a pre-compression facility which makes it most suitable for higher output of tablets.

The machine weighs around 3700 kilograms and different variants have output of 3, 24,000 to 5, 40,000 tablets per hour. Maximum turret RPM is 60. Dust extraction nozzle is also equipped to keep machine working in hassle free manner. Get detailed quotes and specifications and choose your variant of the machine.

Features

High Turret Speed upto 100 RPM
Direct drive with ACVFD
Zero Clearance force feeder with ACVFD
Swing type pressure roll (Main & Pre)
Pre Compression force upto 10 ton
Main compression force upto 10 ton
Contact Parts in SS 316
Three Piece Turret with SS 316 die plate
Lower punch wiper seal (Wiper seal only in D & B tooling)
Front controls for machine & tablet parameters
PLC with 10″ color HMI
Upper punch penetration
Powder level sensor
Pressure loading and overload release through advanced hydro-pneumatic device
Auto lubrication arrangement for centralized lubrication
Lower punch lubrication for punch stem (Punch Body)
3 types of filling cams
Initial rejection
Seven lower punches can be replaced in one setting

MODELS	JSK-TCM-51	JSK-TCM–61	JSK-TCM–75	JSK-TCM–81
No. of Stations	51	61	75	81
Tooling	D	B	BB	BB
Max. Pressure (Ton)	10	6.5	6.5	6.5
Max. Pre Compression Load (Ton)	10	6.5	6.5	6.5
Max Tablet Dia (mm)	25	16	11	11
Max Output Tablets/hr)*	6,12,000	7,32,000	9,00,000	9,72,000
Depth of Fill (mm)	20	17	17	17
Main Motor (kW/HP)	15.7/21	15.7/21	15.7/21	15.7/21
Force feeder Motor (kW/HP)2 nos	0.37/0.5	0.37/0.5	0.37/0.5	0.37/0.5
Total Power (kW/HP)	16.5/22	16.5/22	16.5/22	16.5/22
Compressed Air Supply	3 CFM @ 6 bar	3 CFM @ 6 bar	3 CFM @ 6 bar	3 CFM @ 6 bar
Charging Height (mm)	1995	1995	1995	1995
Discharging Height (mm)	890	890	890	890
Overall Dimension (LxWxH) (mm)	1800 x 1650 x 2100	1800 x 1650 x 2100	1800 x 1650 x 2100	1800 x 1650 x 2100
