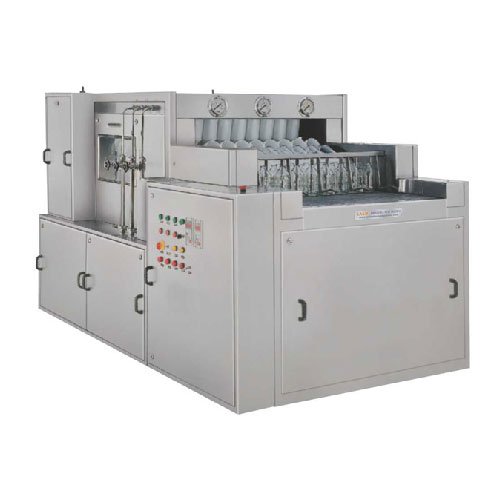

High Speed Linear Bottle Washing Machine Model DMPLBW-100

Approx Price:

The High-Speed Linear Bottle Washing Machine is the best for round bottles and used in PHARMA FOOD & BEVERAGES INDUSTRIES. A feed conveyor or bottles are pushed manually from the feeding table to charge the bottles automatically to the SS mesh conveyor. This saves work, as bottles are automatically fed into pockets. The automated discharge mechanism is that the bottle is loaded onto the turntable (Optional).

Output / Hour: Up to 6000 Bottle
No. of Pocket Across: 8
Wash Cycle: 4 Inner + 1 Outer + 1 Air
Machine Dimension: 2740 mm (L) x 1370 mm (W) x 1675 mm (H)
Case Dimensions: 2950 mm (L) x 1570 mm (W) x 1875 mm (H)

High-speed, straight bottle washer is suitable for round bottles and is widely utilised in PHARMA, FOOD & BEVERAGES INDUSTRIES. Automatic loading arrangements for bottles on the SS wire mesh conveyor are carried manually by the feed conveyor or bottles from the feed table. This saves work since bottles are automatically fed into pockets. The automated discharge mechanism comprises of emptying the bottle to the table (Optional).

Three-cycle rinsing offers flexibility for different wash cycles like fresh water, dematerialized water, etc., depending on the bottle rinsing demand. All pumps consist of SS, and all contact components are constructed of SS 316 with a strong foundation of MS construction.

In the tunnel design, isolation between the feeding area and the release area of cleaned containers is maintained. All mechanical drives are segregated from the washing area and isolated. Only approved materials, together with a careful choice of components, are utilised to take account of all elements of sanitation and the consequences of meeting G.M.P. pharmaceutical standards.

The quality of the rinsing process is assured by 3 internal bowls and 2 external bowl sets, precisely positioned in order to guide the jet towards the centre of the bottle.

TECHNICAL SPECIFICATIONS
Model		PLBW-100
Output / Hour*		Up to 6000 Bottle
No. of Pocket Across		8
Power** Consumption	Main Motor	1 HP / 415 Volts / 50 Hz
	Pump Two Nos.	0.5 HP / 415 Volts / 50 Hz x 2 Nos
	Electrical Heater	3 Kw.
Wash Cycle		4 Inner + 1 Outer + 1 Air
Machine Dimension		2740 mm (L) x 1370 mm (W) x 1675 mm (H)
Case Dimensions		2950 mm (L) x 1570 mm (W) x 1875 mm (H)
Net Weight		800 Kgs
Gross Weight		1200 Kgs
INPUT SPECIFICATIONS:
Round Shape	(A) Ø 30 mm to Ø 65 mm
	(B) 58 mm to 190 mm*** (Height option for other bottle height available)
	(C) 20 to 55 Neck Diameter
Flat / Square	(A) 30 mm to 100 mm (Length)
	(B) 10 mm to 50 mm (Width)
	(C) 58 mm x 190 mm (Height option for other bottle height available)
UTILITY REQUIREMENT:
Electrical supply	3 Phase + Neutral + Earthing
Air Consumptions	2.5 Kg Air Pressure / 20 CFM

Salient Features:

High-pressure pump ensures proper wash of bottle.
Contact parts S.S. 316 Non-Contact parts S.S. 304 Including the basic frame.
Suitable for Round and Flat Glass Bottle (with help of change parts).
Water re-cycling provided as per customer’s SOP.

Optional Features:

For high volume container wash provided high pressure centrifugal pump
Fully functional PLC with Touch Screen for the whole operation of the machine
Printing Facility, Quick Recipes, Batch Details, Password Protection, etc. through PLC

Reviews

There are no reviews yet.

Be the first to review “High Speed Linear Bottle Washing Machine Model DMPLBW-100”

RELATED PRODUCTS

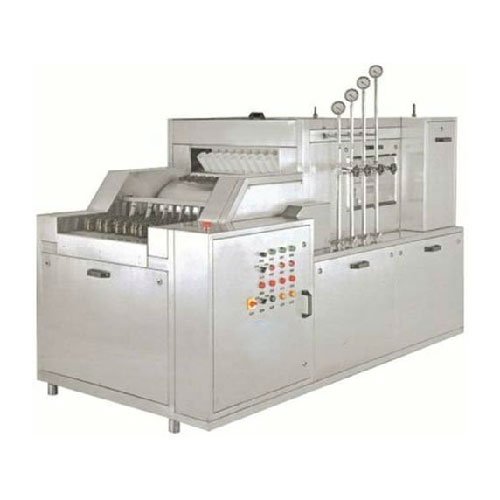

Automatic Linear Bottle Washing Machine

Approx Price:

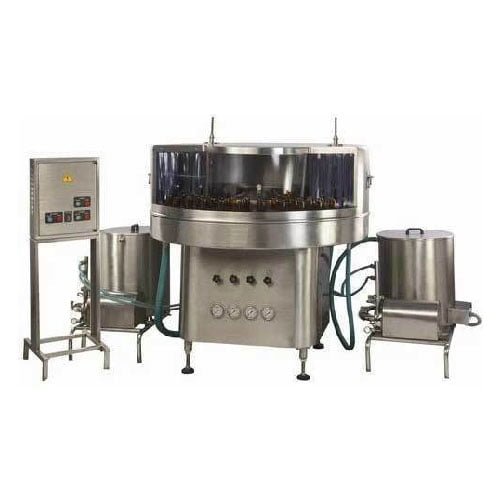

Rotary Bottle Washing Machine
