Robust & Compact Design
Easy & Simple Operation
No skilled labour is required
Double side ejectors provided
Approx Price:
Approx Price:
Robust & Compact Design
Easy & Simple Operation
No skilled labour is required
Double side ejectors provided

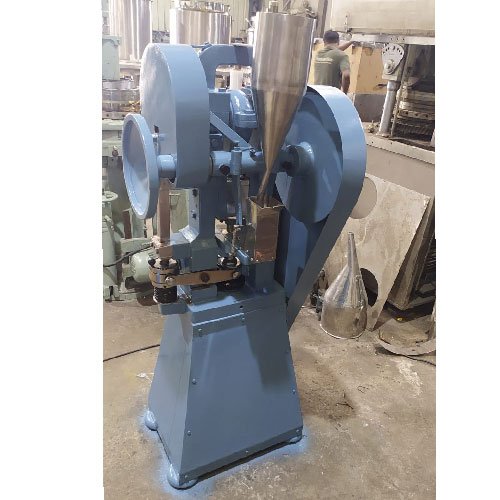

Heavy Duty Tablet Machine 80 is useful for Pharmaceuticals, Plastic, Bakelite, and Confectionery, Electronic Ferrite, catalysts (Flux), Ceramics, Air Fresheners and various other industries.
Max. size of tablet : 100 mm(Special Size on Request & Order)
Max. depth of fill : 80 mm
Diameter of die : 130 mm
Depth of die : 100 mm
Max. Stroke Pressure : 35 Tons app.
No. of strokes Per Min.: 20 to 25
Electric Motor : 5H.P. /440V/50 CYLS/Phase/960 RPM
Lubrication : Oiling and greasing nipples provided at Various points. Also available with Central Lubrication System at an additional cost.
Feed of Powders : Gravitational
Stand : Fabricated from MS Profile Spray Painted
Body : Fabricated from MS Profile Spray Painted
Feed Frame : Chrome Plated Gun Metal
Hopper : 10 Kgs. Capacity Stainless Steel 304 Grade.
Dies : Made of HCHC/OHNS/EN38 Steel. One set of Dies Comprises ofone upper punch, one Lower Punch and one die
Case dimension : 48” X 48” X 72”
Net weight : 1000 kg.
Gross Weight : 1200 Kg.
