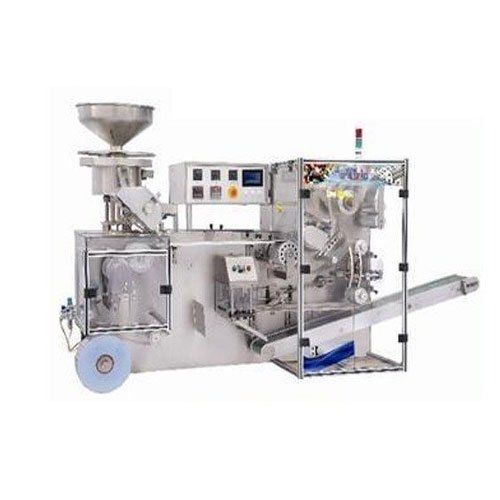

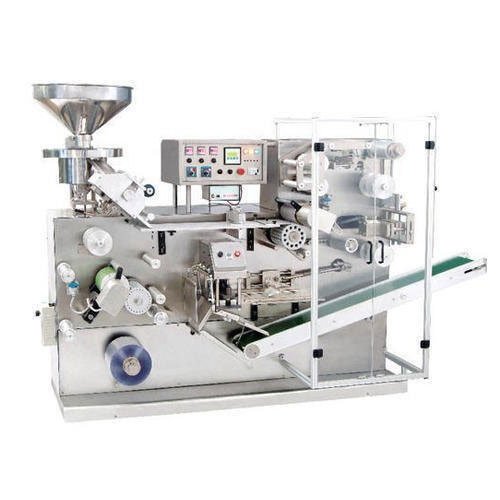

Blister Packing Machine – Alu Alu- FLatron-SRV

Approx Price:

Category: Tablet Capsule Packing Machine

Base Material : ALU-ALU/ PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP
Lading Material : Aluminum with Heat Sealable Lacquer Coating.
Compressed Air : 20 CFM dry air at a Pressure of 8 Kg/Cm2
Water Cooler : 80 Liters / Hr. Inlet pressure = 2.5 bar (Max) Water outlet Temp. = 15 ± 2° C
Connected Load : 4.5 KW
Electrical Power : 415 V ± 10%, 3 Phase, AC, 50 Hz ± 2 Hz (4 Wire).
Earthing Cable : Copper, 2.5 mm2 (Minimum)

Salient Features:

Packing Speed: 30 Cycle/min for Thermo-Forming, 30 Cycle/min for Cold-Forming
Feeding System: Auto feeding system by PLC Logic with pneumatic Combination. (For critical products)
Servo Drive Indexing: Servo web indexing by rigid PLC Logic.
Operator Interface: User friendly MMI touch screen (Man machine interface)
Pneumatic Operations: Festo make for fast response, oil free, minimum wear and tear, easy maintenance and universal Availability of bought outs.

Packaging Materials:

Base Material: ALU-ALU/ PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP
Lading Material: Aluminum with Heat Sealable Lacquer Coating.

Utilities Requirement:

Compressed Air: 20 CFM dry air at a Pressure of 8 Kg/Cm2
Water Cooler: 80 Liters / Hr. Inlet pressure = 2.5 bar (Max) Water outlet Temp. = 15 ± 2° C
Connected Load: 4.5 KW
Electrical Power: 415 V ± 10%, 3 Phase, AC, 50 Hz ± 2 Hz (4 Wire).
Earthing Cable: Copper, 2.5 mm2 (Minimum)

Technical Specifications
DISCRIPTION	THERMO FOMRING (WHEN FITTED)	COLD FORMING ALU-ALU
Base Film Width	PVC Film 150 mm	Alu. Foil 150 mm
Film Thickness mm	PVC 0.25 – 0.40 mm	Alu. 0.13-0.15
Reel Dia.	PVC 440 mm	Alu. 440 mm
Sealing Foil Width	150 mm	150 mm
Sealing Foil Thick	0.02 – 0.03 mm	0.02 – 0.04 mm
Sealing Foil Dia.	210 mm	210 mm
Pack Length	140 mm	140 mm
Pack Width	110 mm	110 mm
Forming Depth	12 mm	12 mm
Cycle Speed/Output	30 Cycles/Min.	30 Cycles/Min.
Overall Dimensions (Approx.) mm	L 2900 x W 900 x H 1600	L 2900 x W 900 x H 1600
Net Weight (Approx.)	1050 Kgs.
